Pull Tape

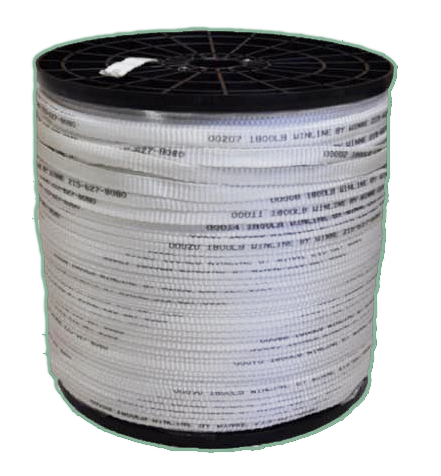

Our cord strap (or pull tape) is pre-lubricated in order to reduce friction and eliminate duct cutting. Lower elongation reduces pulling time, enhances worker safety, and also prevents crushed capstans. Winline Cord Strap is lightweight, and easily blown through conduit or innerduct. Accurate sequential footage markings enable monitoring of cable location during a pull, eliminating the need for measuring tapes. It also helps to determine the quantity remaining on a partial roll.
NOTE
Click on product # to contact us about pricing
| ITEM# | NOM. DIA. | TENSILE | LENGTH |
DIMENSIONS (L X H X W ) |
WEIGHT | UNITS PER PALLET |
| 71157 | 1/2″ | 1250# | 3,000′ | 12″ x 12″ x 12″ | 24 lbs | 36 |
| 73521 | 5/8″ | 1800# | 3,000′ | 12″ x 12″ x 13″ | 32 lbs | 36 |
| 73665 | 3/4″ | 2500# | 3,000′ | 12″ x 12″ x 15″ | 44 lbs | 36 |
| 73741 | 1/2″ | 1250# | 5,000′ | 16″ x 16″ x 15″ | 36 lbs | 36 |
| 73742 | 5/8″ | 1800# | 5,000′ | 16″ x 16″ x 16″ | 51 lbs | 27 |
| 73751 | 1/2″ | 1250# | 100,000′ | 719 lbs | 1 | |
| 73752 | 5/8″ | 1800# | 100,000′ | 952 lbs | 1 | |
| *Items in stock usually ship same day (if order placed before 12:00pm EST)* | ||||||
| **Call 888-266-7590 to check availability and for items not listed above** | ||||||
